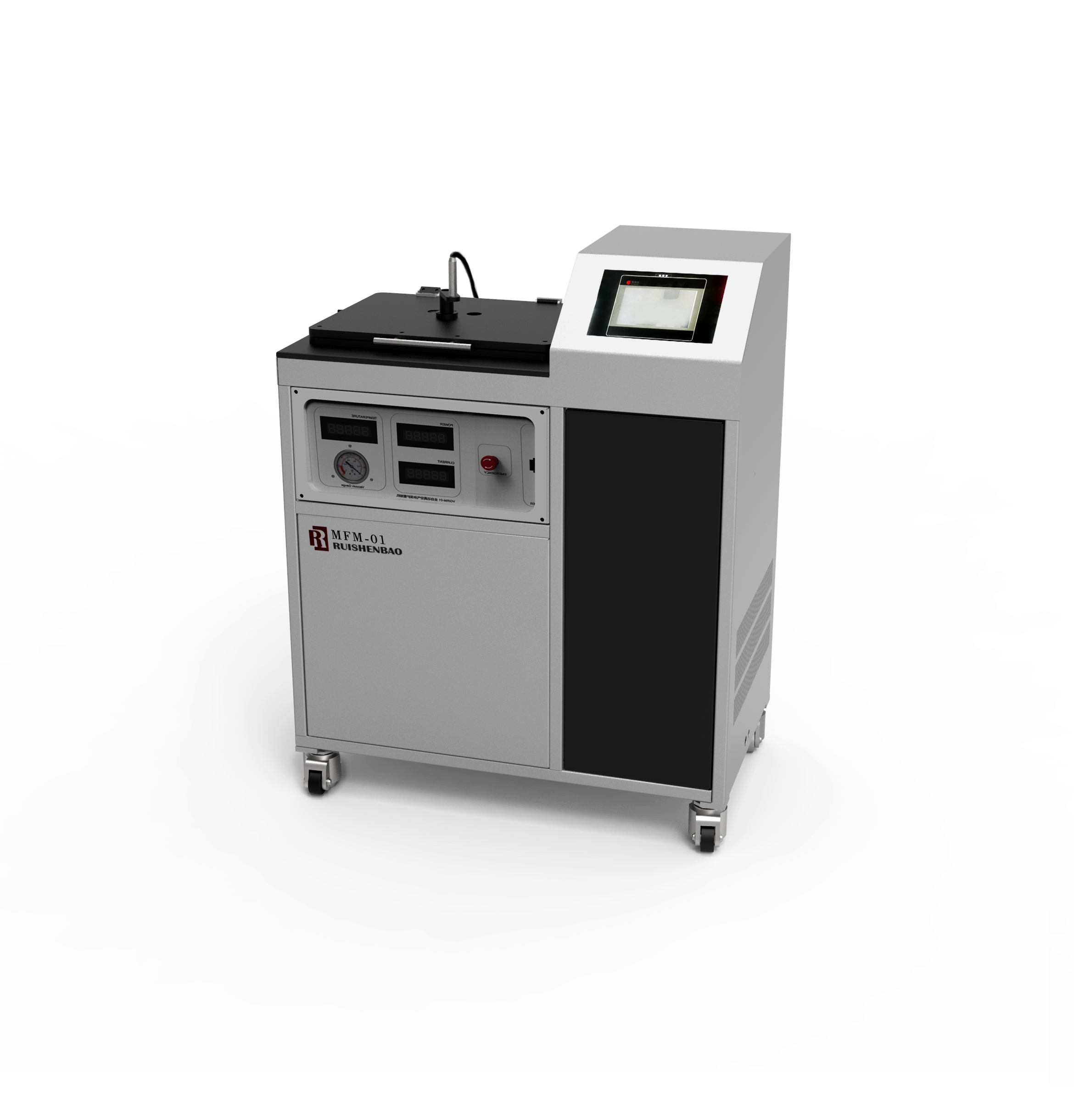

MFM-01 Multifunctional fusion Machine

MFM-01 Multifunctional fusion, also called multifunctional melting furnace, It is a multi-functional sample making equipment developed by Ruishenbao Analysis Technology (Shanghai) Co., LTD. For X-ray fluorescence spectrometer analysis by glass melting, cast iron remelting and metal remelting. It can also be used for the direct reading spectrum sample pretreatment such as cast iron remelting and metal remelting. It can be used for preparation of molten samples of various minerals, silicates, soils, oxides, metals and nonmetals. The multifunctional fusion is designed for rapid and efficient sample preparation, with high degree of automation, stability and flexible operation characteristics. The machine has rational structure, uses the high frequency induction heating technology, with extremely high heating rate, at the same time equipped with a high precision infrared temperature measurement system with real-time temperature measuring and combined with ruishenbao remains high precision temperature control of proprietary technology to ensure that the molten sample temperature accuracy and reproducibility of the process. at the same time through the selected supporting other system can realize many functions, expanding and pioneering. Advantage

1. Repeatable: Touch screen +PLC controller is adopted in operation to realize full automatic control of melting, melting power, heating time and swing Angle/speed, etc., realizing one-key control of the whole sample melting process to the maximum extent, accurate control of the sample making process and good repeatability of production.

2. High quality: rotation and swing device in the melting process, and can be set freely, to ensure that the sample made of uniform without defects, improve the accuracy of sample analysis.

3. Controlled temperature: Preset the heating or cooling program, the equipment will automatically conduct the heating and melting process in accordance with the set program. Infrared temperature measurement feedback adjustment is adopted in the process to meet different melting conditions of samples.

4. High efficiency: the furnace cover adopts heat insulation design structure to ensure that the surface temperature of the furnace body is lower than 35. Continuous sample making does not need to wait for the furnace body to cool down, which greatly improves the working efficiency.

5.Extensibility:Can add vacuum system, inert gas protection system and alloy melting and other options, groundbreaking to achieve a variety of functions.

6.ReliabilitySet the maximum heating temperature limit, prevent the crucible from overheating and protect the spare parts.

7.SafetyWith over current overload over voltage short circuit and other protection functions, to protect equipment and personnel safety.


Security
■ Application area

It is widely used in steel, metallurgy, chemical industry, geology, cement and mineral industry.

■ Technical parameter

Modle

MFM-01

Temperature

Room temperature-1700℃(long-term use

Power

AC380V/50Hz

Rated power

20KW

Type of heating

High frequency inductiong heating

Cooling water pressure

0.15-0.2MPa

Program storage

10

Working atmosphere

airvacuum system and inert gas protection system can be added

Pendulum angle

0-90adjustable

Flutter rate

0-30r/minadjustable

The spin speed

0-30r/min

Number of sample locations

2 or 4customizable

Sample melting speed

5-10min/batchit depends on the complexity of the sample

sizeL×W×H mm

1020×650×1300mm
