Products

Integrated Air-cooling Chiller

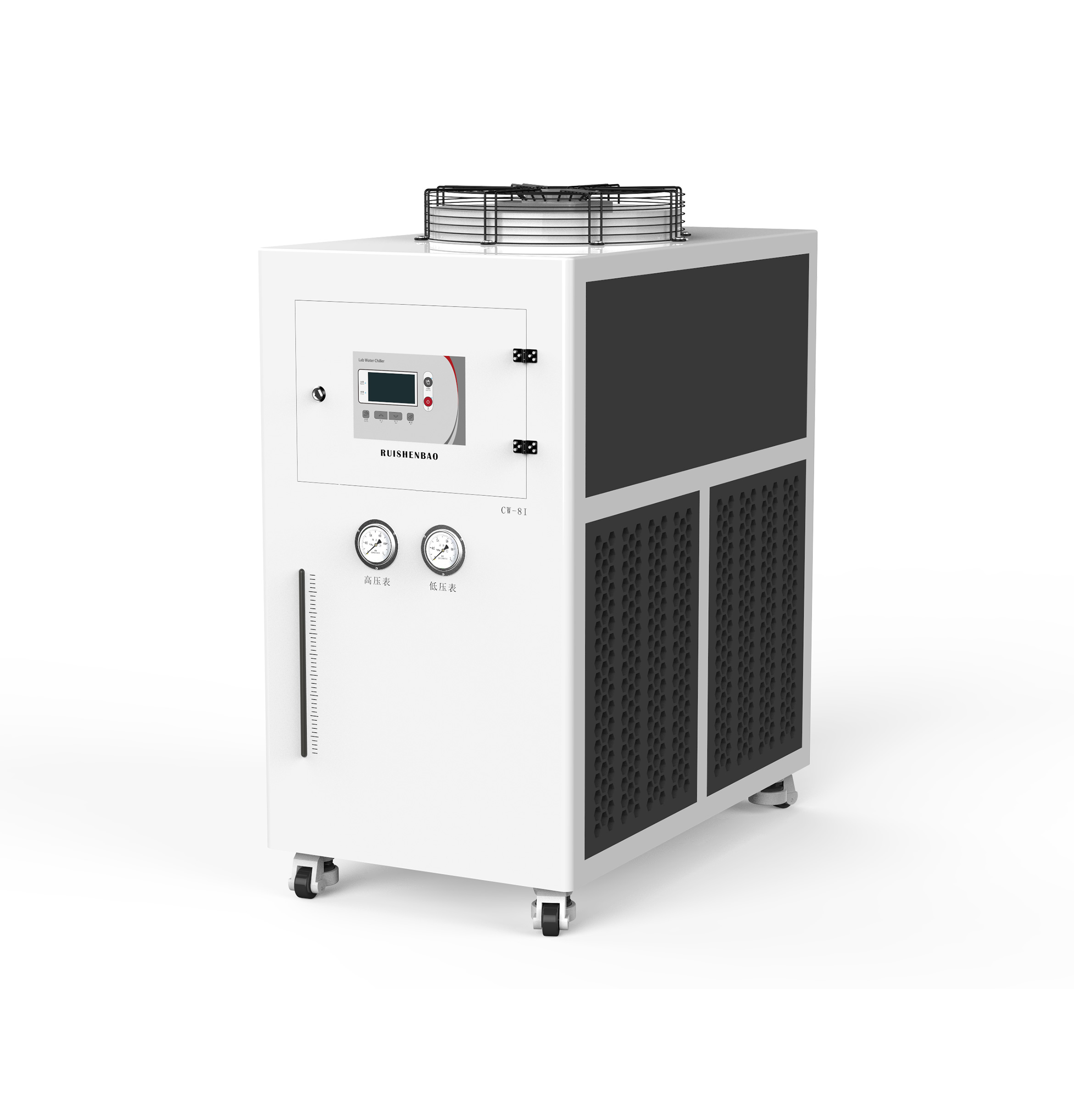

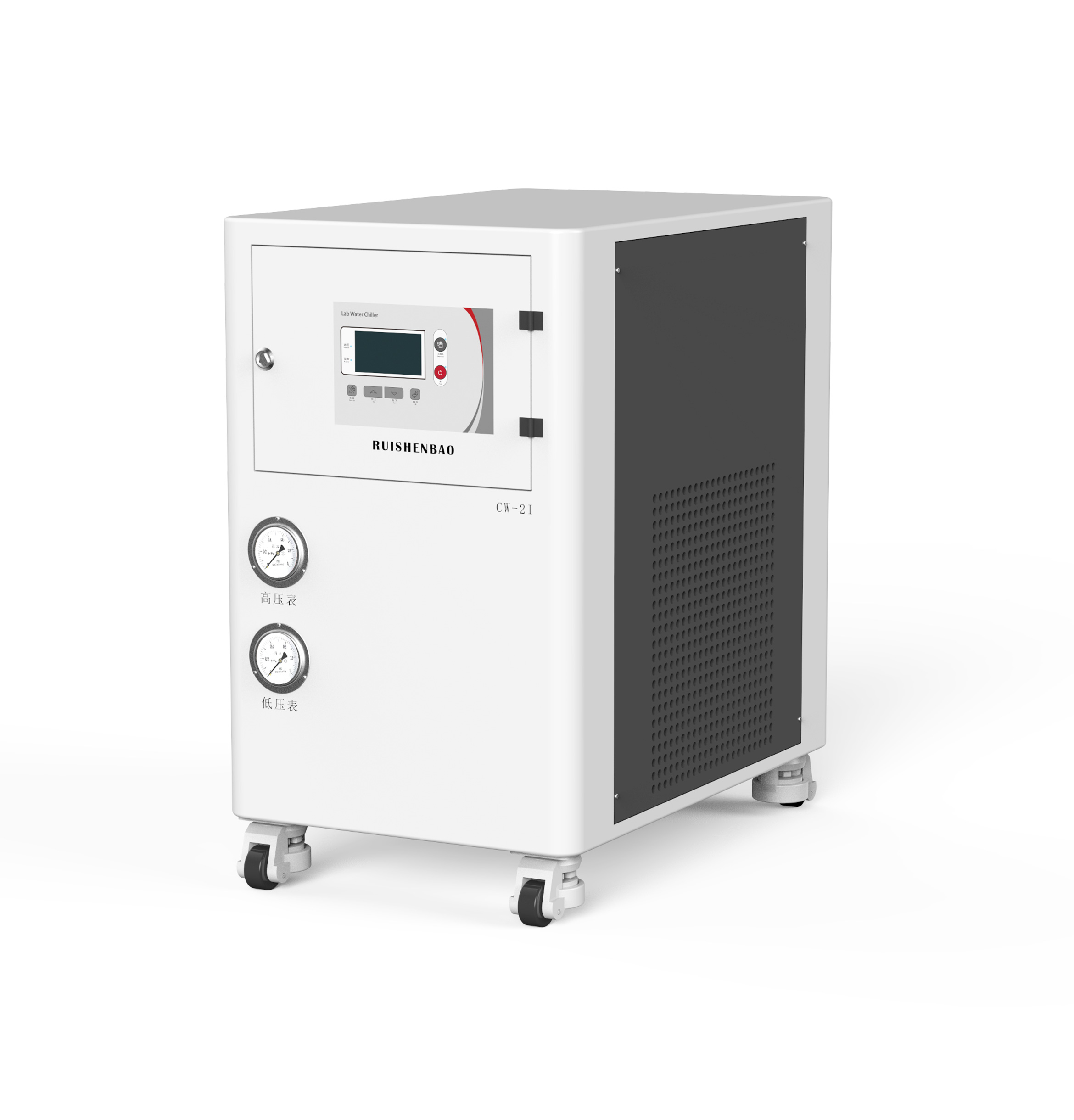

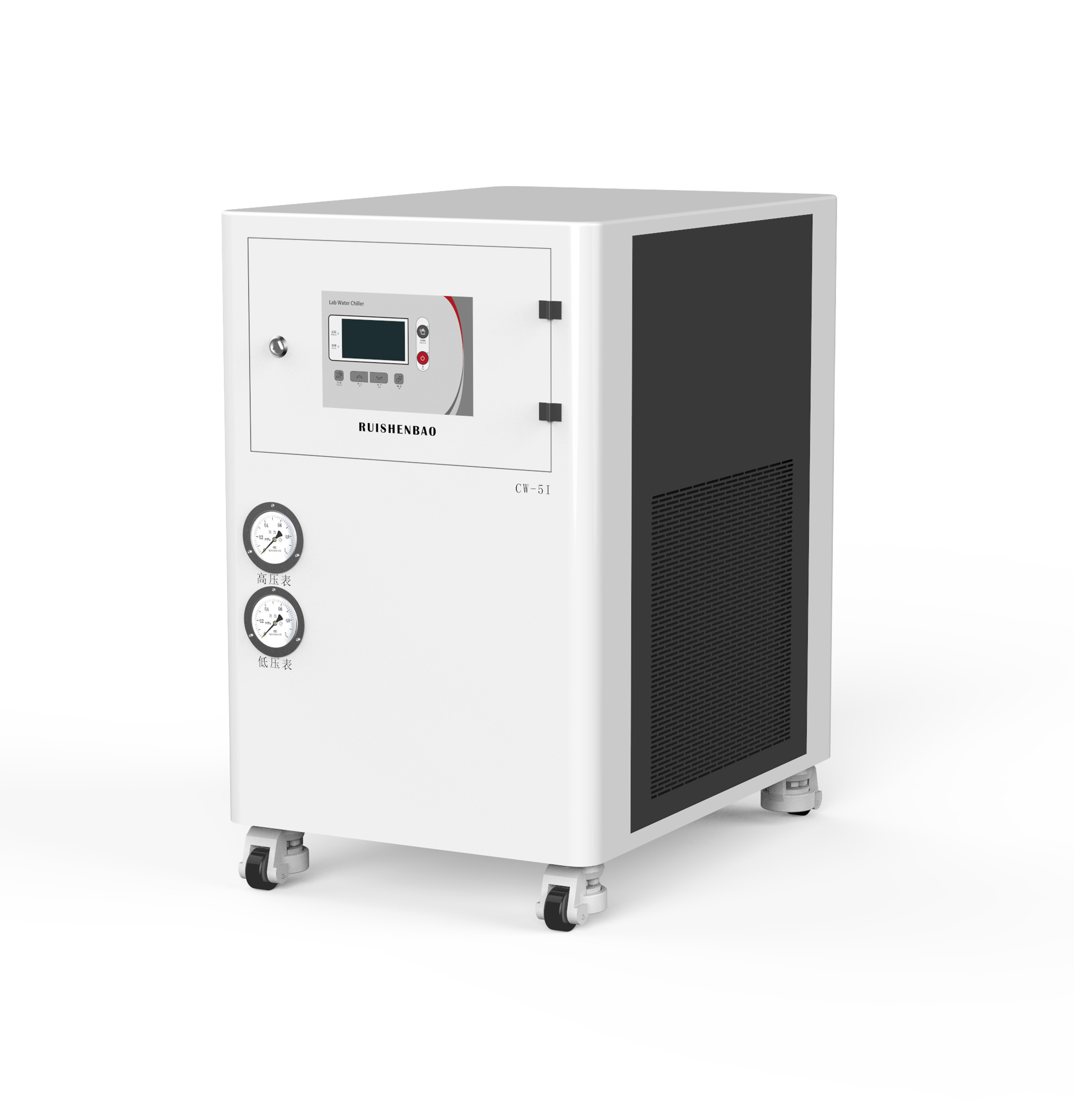

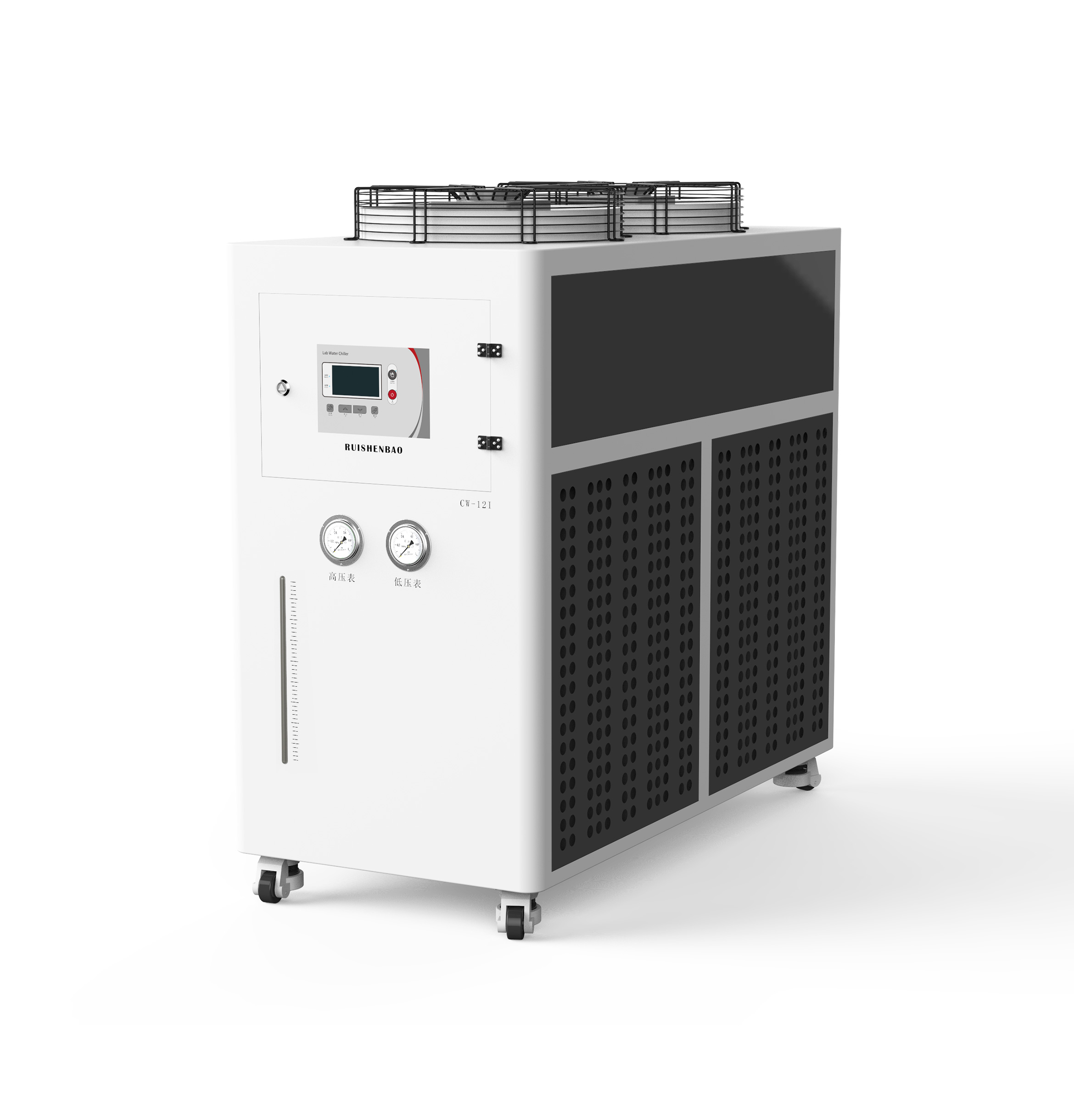

CW series high-precision circulating water chiller, developed by Ruishenbao Analytical (Shanghai) Co., Ltd., is an auxiliary cooling device for analysis equipment in different models of divided chillers, integrated chillers, air-cooling chillers and water-cooling chillers. I series integrated air-cooling high-precision chillers are specially designed for the laboratory without installation conditions for external machines. The device employs high-efficiency flexible vortex compressors and imported electronic components and is equipped with shell tube condensers and evaporators made of copper pipes with excellent heat transferring. Except the advantages of high efficiency, easiness to clean and maintain, its compact structure improves space utilization and helps its free moving. What is more, it is apt to load or unload without the help of professional installation personnel. Advantage

Reliable stability: Most imported components are employed to ensure the stable and reliable operation;

Fewer failures: Imported high-efficiency vortex flexible compressor with slight vibration and low failure rate;

Excellent compatibility: Optional organic coolant, outlet temperature of freezing water as low as 5 °C;

Fine accessories: Imported first-class accessories of the core components, with delicate structure, high efficiency and great durability.

Easy to operate: Small-window LCD screen and control buttons with clear displays, beautiful outlook and simple operation;

Safety: Power protection, compressor overload protection, high and low pressure protection and other multiple protection devices;;

Smooth heat dissipation: The thread tube condenser with highly efficient heat transferring and high-end fans with hydrophilic aluminum, guaranteeing highly efficient heat transfer.


Security
■ Application area

At present, RUISHENBAO water chiller is widely used in laboratories in various industries such as medicine, chemicals, chemical fiber, food, electronics, batteries, glass, rubber, cigarettes, textiles, scientific research, aviation and military engineering. It can be the auxiliary device to a number of equipment, Such as X-ray fluorescence spectrometer (XRF), X-ray diffraction spectrometer (XRD), X-ray photoelectron spectrometer (XPS), atomic absorption spectrometer (AAS), plasma spectrometer (ICP), plasma mass spectrometer (ICP-MS), electron probe Analyzer (EPMA), SEM, TEM, NMR, vacuum die plating machine, material fatigue tester, ion beam epitaxial device(IBE), molecular beam epitaxial device (MBE), MOCVD, high-power laser, plasma etching machine, high-power vacuum brazing furnace.

■ Technical parameter

Item

Integrated Water-cooling Type

Model

CW-5W

CW-8W

CW-12W

CW-25W

Cooling Capacity

5kw*

8kw*

12kw*

25kw*

Power Supply

AC 380V,25A,
50Hz
3- phase

AC 380V,32A,
50Hz  3- phase

AC380V,50Hz

Temperature Range

5-35℃

Control Accuracy

±0.1℃/±0.5℃

±2℃/±1℃

Water Flow

3-25L/min

10-110 L/min

Hydraulic Pressure

0.1-0.45MPa

0.1~0.55MPa

Refrigerant

R22

Power

2.4kw

3.8kw

6kw

11kw

Tank volume (mm)

35L

70L

140L

Indoor unit (mm)

850×500×1160

900×560×1200

1300×650×1500

Note * : The standard cooling capacity is the cooling power at the outdoor ambient temperature of 20℃ and the water supply temperature of 20℃


NEXT : Integrated Water-cooling Chiller
